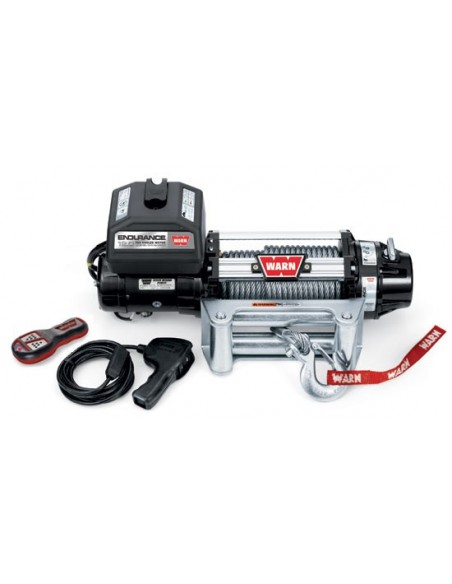

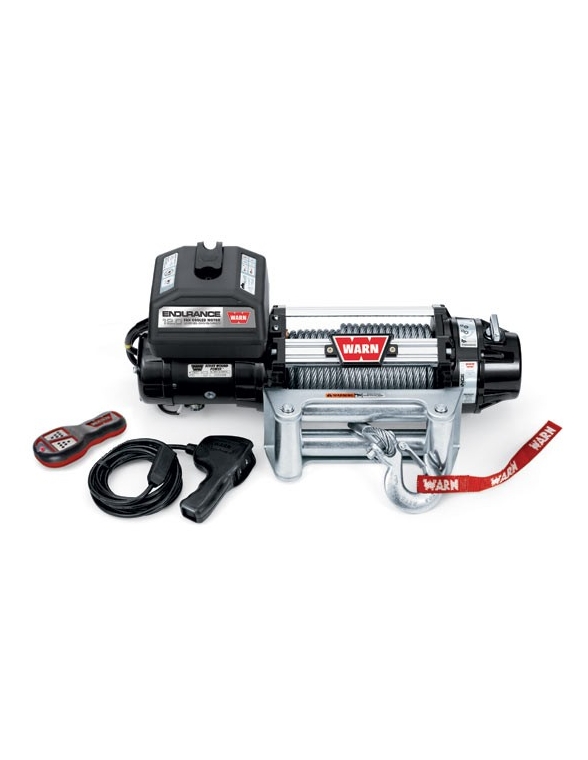

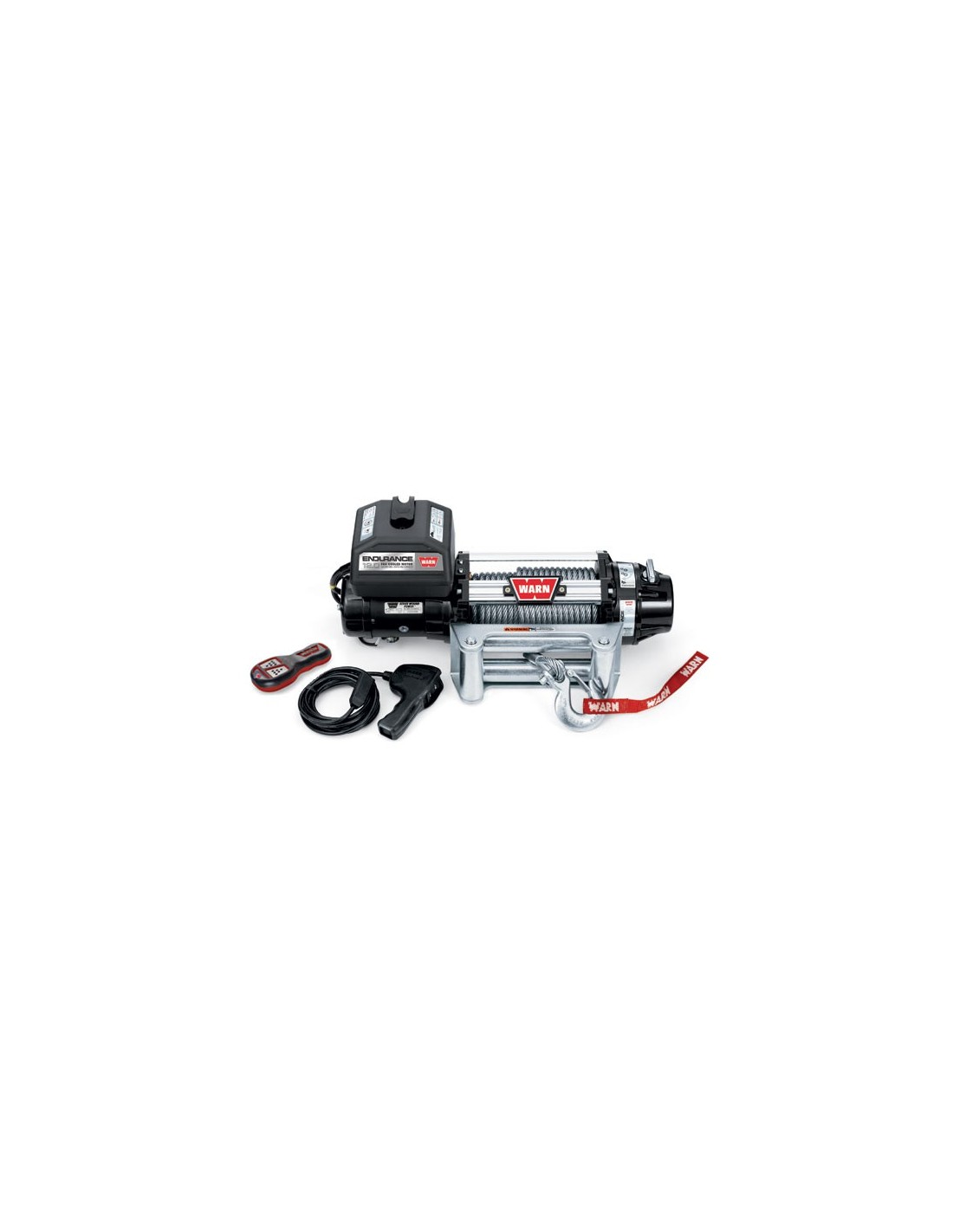

TREUIL Warn 12.0 XE 5400 Kg 12 Volts
TREUIL Warn 12.0 XE 5400 Kg 12 Volts

TREUIL Warn 12.0 XE 5400 Kg 12 Volts

12XE
Livraison 3 a 7 jours
2 248,40 €
TTC
1 873,67 € HT

TREUIL Warn 12.0 XE 5400 Kg 12 Volts, Commande à distance filaire, , Guide-câble à rouleaux, Câble en acier 24mX9,5mm, refroidissement forcé,



12.0 XE SPECS
Winch model: 12.0 XE
Part number: 78600 (12V)
Rated line pull: 12,000 lbs., (5440 kgs) single-line
Motor: Series wound 4.6 hp 12V
Electrical controls: Contactor
Remote controls: Remote switch, 12' (3.7m) lead, hand-held wireless
Geartrain: 3-stage planetary
Gear ratio: 216:1
Clutch (freespooling): Sliding ring gear
Brake: Mechanical cone brake
Wire rope: 80' of 3/8" (24m of 9.5mm diam.)
Fairlead: Roller
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: High-gloss powder coat over primer undercoating
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 100 lbs. (45 kgs)
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 39.5 (12.0) 47.8 amps 1/12,000 (5440)
2000 (910) 15.1 (4.60) 127.0 amps 2/9517 (4317)
4000 (1810) 10.4 (3.17) 192.0 amps 3/7886 (3577)
6000 (2700) 7.7 (2.35) 257.0 amps 4/6732 (3054)
8000 (3630) 6.1 (1.86) 316.0 amps
9500 (4310) 4.8 (1.46) 358.0 amps
12000 (5440) 3.4 (1.04) 429.0 amps
Winch Dimensions: (594mm L. x 162.5mm D. x 178mm H.)
Mounting Bolt Pattern: (254mm x 114.3mm)
